Name

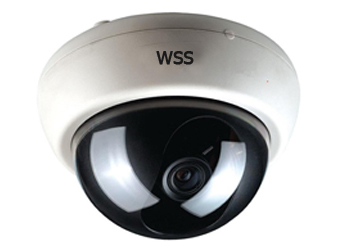

Dome IP Camera

Model

WSS-4803DCIP

Technique parameter

MODEL	WSS-4803DCIP
Hardware	CPU	32Bit RSIC Embedded Processor
Hardware	Operation system	Built-in Linux operation system
Video	Compression format	MPEG-4
	Signal format	-->30fps (D1)
	Frame rate	D1: 720576, CIF:352288, FIELD:720288, QCIF：176144
	Resolution	32Bit RSIC Embedded Processor
	Image adjust	brightness, contrast, chroma, saturation, image quality can be adjusted.
	Delay time	less than 500 MSEL(0.50 second) in Lan system
CCD module	Image sensor	1/3" SONY
	Horizontal resolution	480 TVL
	Built-in lens	3.6mm\4mm\6mm\8mm\12mm option
	Minimum illumination	0.1 Lux/F1.6
	Signal noise ratio	>48dB (AGC off)
	White balance	Auto tracking white balance
	Backlight compensation	Auto backlight compensation
Audio	Audio processor	Built-in audio processor, support sound monitor synchronization.
Audio	Audio gain	Auto Audio Gain Control（AGC）
Network	Internet interface	RJ45, 10/100m ethernet network
	Protocol	TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPoE and so on
	IP mode	Dynamic IP address, Static IP address, PPPOE
Configuration	Shape	dome camera, indoor camera
	Power consumption	DC5V 1A
	Temperature	0~50 degrees centigrade
	Humidity	95% RH
	Attachment	Adaptor, Disc, Manual, bracket
Alarm	Intelligent Motion detection	Adjustable image size and quality with two configurable motion detection Windows, setting of clique, alarm input and output can support mobile sensing, videolost, date, time, and event trigger, AVI format export
Alarm	Alarm action	Pre- and Post- Alarm Snapshots ,scheduled recording, manual recording, relay output control the peripheral equipment
System	Syste m requirement	Microsoft Win98 SE/ME/2000/XP, Internet Explorer 5.0, NET4.5 or above
Feature	Safety Settings	Supports the two-level password: administrator authority, user authority
	Browsing	Needn't port adding. easy connecting and using. Characteristic P2P transmission technology, no browsing number limit. support a large number of user browsing at the same time and the frame rate is not influencing. Penetrate firewall.
	Center management software	Remote configuration and control, 1、4、9、16、25、36 monitor pictures in one screen of client software, unconditional monitor pictures of professional software; Fast/slow forward replay and pause, Supports remote-file server, can realize remote playback and download.
	Center management software	Remote configuration and control, 1、4、9、16、25、36 monitor pictures in one screen of client software, unconditional monitor pictures of professional software; Fast/slow forward replay and pause, Supports remote-file server, can realize remote playback and download.
